概述

TPC-DS（Transaction Processing Performance Council - Decision Support）是一种由交易处理性能评估委员会（TPC）发布的基准测试标准，旨在评估决策支持系统（Decision Support Systems，DSS）的性能。相较于TPC-H更适合于评估传统的查询和报表性能，TPC-DS包含了对数据集的分析报告、交互查询、数据挖掘等复杂应用，更接近真实的数据仓库业务分析场景。

本报告为您提供了云器Lakehouse与Spark SQL在TPC-DS测试集10TB规模上的测试结果，结论如下：

预览

• 在TPC-DS 10TB规模数据集上的比较测试中，与Spark相比云器Lakehouse展现出了显著的性能优势，其性能相当于Spark的9.51倍。
• 云器Lakehouse对Spark长执行作业有明显性能提升。

测试环境

• Spark测试环境

• 云器Lakehouse测试环境

测试数据

• 数据表通过Analyze收集统计信息。

测试过程

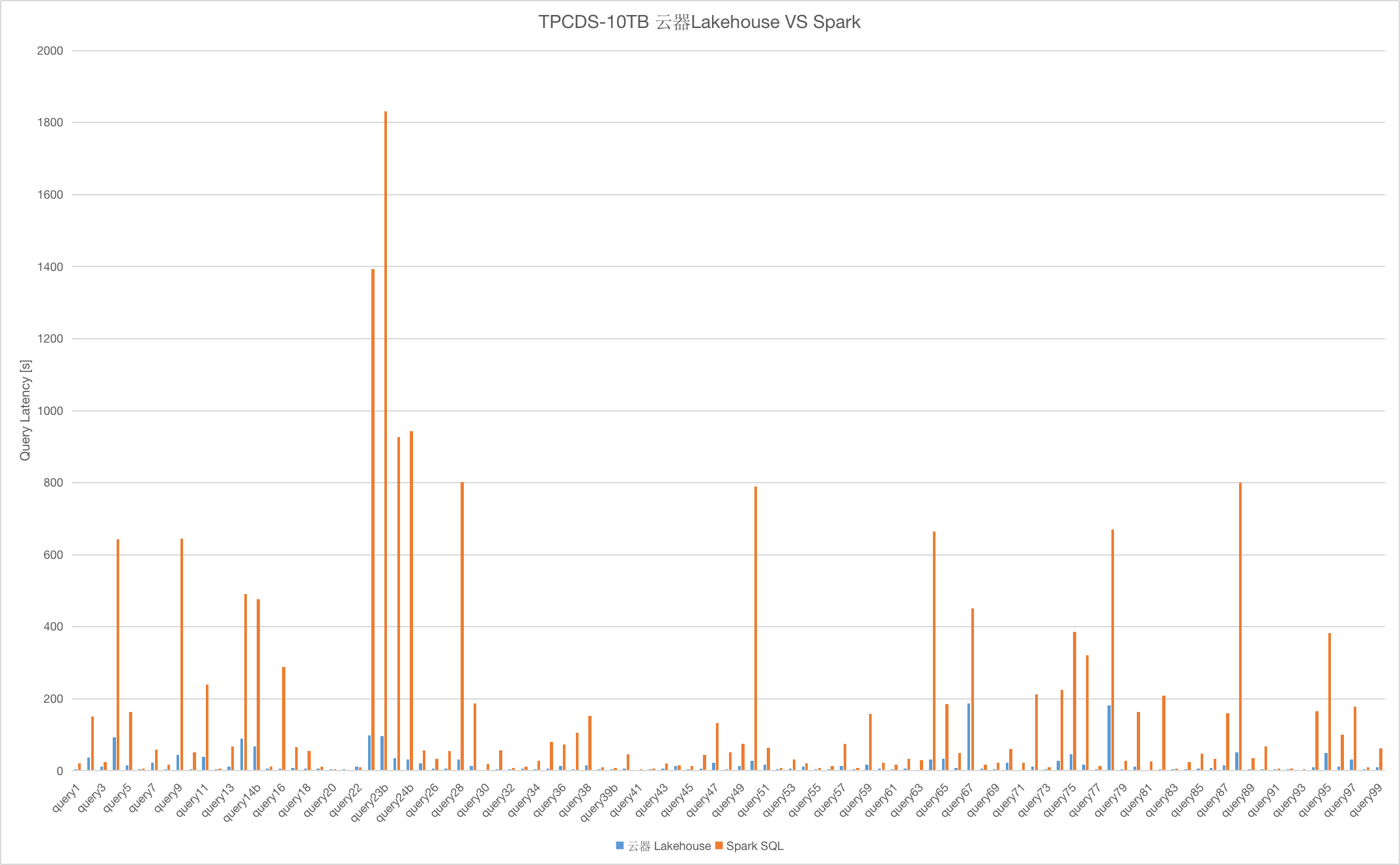

在测试中，我们选择了TPC-DS基准测试中的103个复杂SQL查询，对10TB的数据集进行性能测试。测试结果包括每个查询在云器Lakehouse和Spark SQL中的执行时间，以及两者的性能对比。

Spark

在元数据服务中创建TPC-DS的数据表，使用Parquet文件格式、与Lakehouse使用相同的分区设置。

同时，从云器Lakehouse中导出TPC-DS 10TB测试数据，以数据文件形式保存至对象存储服务上，以保证双方的测试数据相同。然后在Spark中使用Insert Into方式读取数据文件并写入Spark定义的数据表中。

• 运行TPC-DS 103个query时Spark时添加参数:

--spark 生产环境大作业必调参数之一。在处理TPCDS-10T规模的数据时，若使用默认的最大并发数200，会因规模偏小而导致大量task内存占用过高，并且极易触发shuffle spill，进而使Spark运行缓慢。经测试，将该参数值调整为2000后，观察到spill大幅减少。因此，我们决定采用2000这一参数值，以优化Spark的运行性能。
set spark.sql.shuffle.partitions = 2000;spark默认值为200

云器Lakehouse

创建集群和表

使用云器Lakehouse XLARGE VCluster在阿里云OSS上进行测试，所有表均使用默认存储格式。

create vcluster if not exists XLARGE_CLUSTER vcluster_size='XLARGE' vcluster_type='Analytics'  AUTO_RESUME=TRUE AUTO_SUSPEND_IN_SECOND=300 min_replicas=1 max_replicas=1;

建表语句

drop table if exists call_center;
drop table if exists catalog_page;
drop table if exists catalog_returns;
drop table if exists catalog_sales;
drop table if exists customer;
drop table if exists customer_address;
drop table if exists customer_demographics;
drop table if exists date_dim;
drop table if exists household_demographics;
drop table if exists income_band;
drop table if exists inventory;
drop table if exists item;
drop table if exists promotion;
drop table if exists reason;
drop table if exists ship_mode;
drop table if exists store;
drop table if exists store_returns;
drop table if exists store_sales;
drop table if exists time_dim;
drop table if exists warehouse;
drop table if exists web_page;
drop table if exists web_returns;
drop table if exists web_sales;
drop table if exists web_site;
drop table if exists catalog_sales;
drop table if exists catalog_returns;

create table if not exists catalog_sales
(
      cs_sold_date_sk          int,
      cs_sold_time_sk          int,
      cs_ship_date_sk          int,
      cs_bill_customer_sk      int,
      cs_bill_cdemo_sk         int,
      cs_bill_hdemo_sk         int,
      cs_bill_addr_sk          int,
      cs_ship_customer_sk      int,
      cs_ship_cdemo_sk         int,
      cs_ship_hdemo_sk         int,
      cs_ship_addr_sk          int,
      cs_call_center_sk        int,
      cs_catalog_page_sk       int,
      cs_ship_mode_sk          int,
      cs_warehouse_sk          int,
      cs_item_sk               int,
      cs_promo_sk              int,
      cs_order_number          long,
      cs_quantity              int,
      cs_wholesale_cost        decimal(7,2),
      cs_list_price            decimal(7,2),
      cs_sales_price           decimal(7,2),
      cs_ext_discount_amt      decimal(7,2),
      cs_ext_sales_price       decimal(7,2),
      cs_ext_wholesale_cost    decimal(7,2),
      cs_ext_list_price        decimal(7,2),
      cs_ext_tax               decimal(7,2),
      cs_coupon_amt            decimal(7,2),
      cs_ext_ship_cost         decimal(7,2),
      cs_net_paid              decimal(7,2),
      cs_net_paid_inc_tax      decimal(7,2),
      cs_net_paid_inc_ship     decimal(7,2),
      cs_net_paid_inc_ship_tax decimal(7,2),
      cs_net_profit            decimal(7,2)
)  partitioned by (cs_sold_date_sk);

create table if not exists catalog_returns
(
      cr_returned_date_sk      int,
      cr_returned_time_sk      int,
      cr_item_sk               int,
      cr_refunded_customer_sk  int,
      cr_refunded_cdemo_sk     int,
      cr_refunded_hdemo_sk     int,
      cr_refunded_addr_sk      int,
      cr_returning_customer_sk int,
      cr_returning_cdemo_sk    int,
      cr_returning_hdemo_sk    int,
      cr_returning_addr_sk     int,
      cr_call_center_sk        int,
      cr_catalog_page_sk       int,
      cr_ship_mode_sk          int,
      cr_warehouse_sk          int,
      cr_reason_sk             int,
      cr_order_number          long,
      cr_return_quantity       int,
      cr_return_amount         decimal(7,2),
      cr_return_tax            decimal(7,2),
      cr_return_amt_inc_tax    decimal(7,2),
      cr_fee                   decimal(7,2),
      cr_return_ship_cost      decimal(7,2),
      cr_refunded_cash         decimal(7,2),
      cr_reversed_charge       decimal(7,2),
      cr_store_credit          decimal(7,2),
      cr_net_loss              decimal(7,2)
)  partitioned by (cr_returned_date_sk);

create table if not exists inventory
(
  inv_date_sk          int,
  inv_item_sk          int,
  inv_warehouse_sk     int,
  inv_quantity_on_hand int
)  partitioned by (inv_date_sk);

create table if not exists store_sales
(
  ss_sold_date_sk        int,
  ss_sold_time_sk        int,
  ss_item_sk             int,
  ss_customer_sk         int,
  ss_cdemo_sk            int,
  ss_hdemo_sk            int,
  ss_addr_sk             int,
  ss_store_sk            int,
  ss_promo_sk            int,
  ss_ticket_number       long,
  ss_quantity            int,
  ss_wholesale_cost      decimal(7,2),
  ss_list_price          decimal(7,2),
  ss_sales_price         decimal(7,2),
  ss_ext_discount_amt    decimal(7,2),
  ss_ext_sales_price     decimal(7,2),
  ss_ext_wholesale_cost  decimal(7,2),
  ss_ext_list_price      decimal(7,2),
  ss_ext_tax             decimal(7,2),
  ss_coupon_amt          decimal(7,2),
  ss_net_paid            decimal(7,2),
  ss_net_paid_inc_tax    decimal(7,2),
  ss_net_profit          decimal(7,2)
)  partitioned by (ss_sold_date_sk);

create table if not exists store_returns
(
  sr_returned_date_sk    int,
  sr_return_time_sk      int,
  sr_item_sk             int,
  sr_customer_sk         int,
  sr_cdemo_sk            int,
  sr_hdemo_sk            int,
  sr_addr_sk             int,
  sr_store_sk            int,
  sr_reason_sk           int,
  sr_ticket_number       long,
  sr_return_quantity     int,
  sr_return_amt          decimal(7,2),
  sr_return_tax          decimal(7,2),
  sr_return_amt_inc_tax  decimal(7,2),
  sr_fee                 decimal(7,2),
  sr_return_ship_cost    decimal(7,2),
  sr_refunded_cash       decimal(7,2),
  sr_reversed_charge     decimal(7,2),
  sr_store_credit        decimal(7,2),
  sr_net_loss            decimal(7,2)
)  partitioned by (sr_returned_date_sk);

create table if not exists web_sales
(
  ws_sold_date_sk          int,
  ws_sold_time_sk          int,
  ws_ship_date_sk          int,
  ws_item_sk               int,
  ws_bill_customer_sk      int,
  ws_bill_cdemo_sk         int,
  ws_bill_hdemo_sk         int,
  ws_bill_addr_sk          int,
  ws_ship_customer_sk      int,
  ws_ship_cdemo_sk         int,
  ws_ship_hdemo_sk         int,
  ws_ship_addr_sk          int,
  ws_web_page_sk           int,
  ws_web_site_sk           int,
  ws_ship_mode_sk          int,
  ws_warehouse_sk          int,
  ws_promo_sk              int,
  ws_order_number          long,
  ws_quantity              int,
  ws_wholesale_cost        decimal(7,2),
  ws_list_price            decimal(7,2),
  ws_sales_price           decimal(7,2),
  ws_ext_discount_amt      decimal(7,2),
  ws_ext_sales_price       decimal(7,2),
  ws_ext_wholesale_cost    decimal(7,2),
  ws_ext_list_price        decimal(7,2),
  ws_ext_tax               decimal(7,2),
  ws_coupon_amt            decimal(7,2),
  ws_ext_ship_cost         decimal(7,2),
  ws_net_paid              decimal(7,2),
  ws_net_paid_inc_tax      decimal(7,2),
  ws_net_paid_inc_ship     decimal(7,2),
  ws_net_paid_inc_ship_tax decimal(7,2),
  ws_net_profit            decimal(7,2)
) partitioned by (ws_sold_date_sk);

create table if not exists web_returns
(
  wr_returned_date_sk      int,
  wr_returned_time_sk      int,
  wr_item_sk               int,
  wr_refunded_customer_sk  int,
  wr_refunded_cdemo_sk     int,
  wr_refunded_hdemo_sk     int,
  wr_refunded_addr_sk      int,
  wr_returning_customer_sk int,
  wr_returning_cdemo_sk    int,
  wr_returning_hdemo_sk    int,
  wr_returning_addr_sk     int,
  wr_web_page_sk           int,
  wr_reason_sk             int,
  wr_order_number          long,
  wr_return_quantity       int,
  wr_return_amt            decimal(7,2),
  wr_return_tax            decimal(7,2),
  wr_return_amt_inc_tax    decimal(7,2),
  wr_fee                   decimal(7,2),
  wr_return_ship_cost      decimal(7,2),
  wr_refunded_cash         decimal(7,2),
  wr_reversed_charge       decimal(7,2),
  wr_account_credit        decimal(7,2),
  wr_net_loss              decimal(7,2)
)  partitioned by (wr_returned_date_sk);

create table if not exists call_center
(
  cc_call_center_sk        int,
  cc_call_center_id        string,
  cc_rec_start_date        date,
  cc_rec_end_date          date,
  cc_closed_date_sk        int,
  cc_open_date_sk          int,
  cc_name                  string,
  cc_class                 string,
  cc_employees             int,
  cc_sq_ft                 int,
  cc_hours                 string,
  cc_manager               string,
  cc_mkt_id                int,
  cc_mkt_class             string,
  cc_mkt_desc              string,
  cc_market_manager        string,
  cc_division              int,
  cc_division_name         string,
  cc_company               int,
  cc_company_name          string,
  cc_street_number         string,
  cc_street_name           string,
  cc_street_type           string,
  cc_suite_number          string,
  cc_city                  string,
  cc_county                string,
  cc_state                 string,
  cc_zip                   string,
  cc_country               string,
  cc_gmt_offset            decimal(5,2),
  cc_tax_percentage        decimal(5,2)
);

create table if not exists catalog_page (
  cp_catalog_page_sk       int,
  cp_catalog_page_id       string,
  cp_start_date_sk         int,
  cp_end_date_sk           int,
  cp_department            string,
  cp_catalog_number        int,
  cp_catalog_page_number   int,
  cp_description           string,
  cp_type                  string) ;

create table if not exists customer (
  c_customer_sk             int,
  c_customer_id             string,
  c_current_cdemo_sk        int,
  c_current_hdemo_sk        int,
  c_current_addr_sk         int,
  c_first_shipto_date_sk    int,
  c_first_sales_date_sk     int,
  c_salutation              string,
  c_first_name              string,
  c_last_name               string,
  c_preferred_cust_flag     string,
  c_birth_day               int,
  c_birth_month             int,
  c_birth_year              int,
  c_birth_country           string,
  c_login                   string,
  c_email_address           string,
  c_last_review_date        string) ;

create table if not exists customer_address (
  ca_address_sk             int,
  ca_address_id             string,
  ca_street_number          string,
  ca_street_name            string,
  ca_street_type            string,
  ca_suite_number           string,
  ca_city                   string,
  ca_county                 string,
  ca_state                  string,
  ca_zip                    string,
  ca_country                string,
  ca_gmt_offset             decimal(5,2),
  ca_location_type          string) ;

create table if not exists customer_demographics (
  cd_demo_sk                int,
  cd_gender                 string,
  cd_marital_status         string,
  cd_education_status       string,
  cd_purchase_estimate      int,
  cd_credit_rating          string,
  cd_dep_count              int,
  cd_dep_employed_count     int,
  cd_dep_college_count      int) ;

create table if not exists date_dim (
  d_date_sk                 int,
  d_date_id                 string,
  d_date                    date,
  d_month_seq               int,
  d_week_seq                int,
  d_quarter_seq             int,
  d_year                    int,
  d_dow                     int,
  d_moy                     int,
  d_dom                     int,
  d_qoy                     int,
  d_fy_year                 int,
  d_fy_quarter_seq          int,
  d_fy_week_seq             int,
  d_day_name                string,
  d_quarter_name            string,
  d_holiday                 string,
  d_weekend                 string,
  d_following_holiday       string,
  d_first_dom               int,
  d_last_dom                int,
  d_same_day_ly             int,
  d_same_day_lq             int,
  d_current_day             string,
  d_current_week            string,
  d_current_month           string,
  d_current_quarter         string,
  d_current_year            string) ;

create table if not exists household_demographics (
  hd_demo_sk                int,
  hd_income_band_sk         int,
  hd_buy_potential          string,
  hd_dep_count              int,
  hd_vehicle_count          int) ;

create table if not exists income_band (
  ib_income_band_sk         int,
  ib_lower_bound            int,
  ib_upper_bound            int) using parquet ;

create table if not exists item (
  i_item_sk                 int,
  i_item_id                 string,
  i_rec_start_date          date,
  i_rec_end_date            date,
  i_item_desc               string,
  i_current_price           decimal(7,2),
  i_wholesale_cost          decimal(7,2),
  i_brand_id                int,
  i_brand                   string,
  i_class_id                int,
  i_class                   string,
  i_category_id             int,
  i_category                string,
  i_manufact_id             int,
  i_manufact                string,
  i_size                    string,
  i_formulation             string,
  i_color                   string,
  i_units                   string,
  i_container               string,
  i_manager_id              int,
  i_product_name            string) ;

create table if not exists promotion (
  p_promo_sk                int,
  p_promo_id                string,
  p_start_date_sk           int,
  p_end_date_sk             int,
  p_item_sk                 int,
  p_cost                    decimal(15,2),
  p_response_target         int,
  p_promo_name              string,
  p_channel_dmail           string,
  p_channel_email           string,
  p_channel_catalog         string,
  p_channel_tv              string,
  p_channel_radio           string,
  p_channel_press           string,
  p_channel_event           string,
  p_channel_demo            string,
  p_channel_details         string,
  p_purpose                 string,
  p_discount_active         string) ;

create table if not exists reason (
  r_reason_sk               int,
  r_reason_id               string,
  r_reason_desc             string) ;

create table if not exists ship_mode (
  sm_ship_mode_sk           int,
  sm_ship_mode_id           string,
  sm_type                   string,
  sm_code                   string,
  sm_carrier                string,
  sm_contract               string) ;

create table if not exists store (
  s_store_sk                int,
  s_store_id                string,
  s_rec_start_date          date,
  s_rec_end_date            date,
  s_closed_date_sk          int,
  s_store_name              string,
  s_number_employees        int,
  s_floor_space             int,
  s_hours                   string,
  s_manager                 string,
  s_market_id               int,
  s_geography_class         string,
  s_market_desc             string,
  s_market_manager          string,
  s_division_id             int,
  s_division_name           string,
  s_company_id              int,
  s_company_name            string,
  s_street_number           string,
  s_street_name             string,
  s_street_type             string,
  s_suite_number            string,
  s_city                    string,
  s_county                  string,
  s_state                   string,
  s_zip                     string,
  s_country                 string,
  s_gmt_offset              decimal(5,2),
  s_tax_precentage          decimal(5,2)) ;

create table if not exists time_dim (
  t_time_sk                 int,
  t_time_id                 string,
  t_time                    int,
  t_hour                    int,
  t_minute                  int,
  t_second                  int,
  t_am_pm                   string,
  t_shift                   string,
  t_sub_shift               string,
  t_meal_time               string) ;

create table if not exists warehouse (
  w_warehouse_sk           int,
  w_warehouse_id           string,
  w_warehouse_name         string,
  w_warehouse_sq_ft        int,
  w_street_number          string,
  w_street_name            string,
  w_street_type            string,
  w_suite_number           string,
  w_city                   string,
  w_county                 string,
  w_state                  string,
  w_zip                    string,
  w_country                string,
  w_gmt_offset             decimal(5,2)) ;

create table if not exists web_page (
  wp_web_page_sk           int,
  wp_web_page_id           string,
  wp_rec_start_date        date,
  wp_rec_end_date          date,
  wp_creation_date_sk      int,
  wp_access_date_sk        int,
  wp_autogen_flag          string,
  wp_customer_sk           int,
  wp_url                   string,
  wp_type                  string,
  wp_char_count            int,
  wp_link_count            int,
  wp_image_count           int,
  wp_max_ad_count          int) ;

create table if not exists web_site (
  web_site_sk              int,
  web_site_id              string,
  web_rec_start_date       date,
  web_rec_end_date         date,
  web_name                 string,
  web_open_date_sk         int,
  web_close_date_sk        int,
  web_class                string,
  web_manager              string,
  web_mkt_id               int,
  web_mkt_class            string,
  web_mkt_desc             string,
  web_market_manager       string,
  web_company_id           int,
  web_company_name         string,
  web_street_number        string,
  web_street_name          string,
  web_street_type          string,
  web_suite_number         string,
  web_city                 string,
  web_county               string,
  web_state                string,
  web_zip                  string,
  web_country              string,
  web_gmt_offset           decimal(5,2),
  web_tax_percentage       decimal(5,2)) ;

analyze table call_center compute statistics for all columns;
analyze table catalog_page compute statistics for all columns;
analyze table catalog_returns compute statistics for all columns;
analyze table catalog_sales compute statistics for all columns;
analyze table customer compute statistics for all columns;
analyze table customer_address compute statistics for all columns;
analyze table customer_demographics compute statistics for all columns;
analyze table date_dim compute statistics for all columns;
analyze table household_demographics compute statistics for all columns;
analyze table income_band compute statistics for all columns;
analyze table inventory compute statistics for all columns;
analyze table item compute statistics for all columns;
analyze table promotion compute statistics for all columns;
analyze table reason compute statistics for all columns;
analyze table ship_mode compute statistics for all columns;
analyze table store compute statistics for all columns;
analyze table store_returns compute statistics for all columns;
analyze table store_sales compute statistics for all columns;
analyze table time_dim compute statistics for all columns;
analyze table warehouse compute statistics for all columns;
analyze table web_page compute statistics for all columns;
analyze table web_returns compute statistics for all columns;
analyze table web_sales compute statistics for all columns;
analyze table web_site compute statistics for all columns;

执行查询

TPC-DS 103 个测试查询语句： TPC-DS-Query-SQL

测试结果

以下是云器Lakehouse和SparkSQL在103个查询上的性能测试结果，单位为秒(s)，数值越低表示性能越好。

• 所有查询都是取第一次为结果
