验证SchemaEvolution的操作结果

云器Lakehouse Schema Evolution 支持通过ALTER语句变更表中的列，支持添加列、修改列、删除列。修改列包括修改列名和列的数据类型。支持修改复杂类型变化。本文给出对应实例，方便验证SchemaEvolution的操作结果，快速理解Schema Evolution的结果，验证实现是否符合预期。

创建schema和表


CREATE SCHEMA IF NOT EXISTS clickzetta_demo_schema_evolution_schema;
USE SCHEMA clickzetta_demo_schema_evolution_schema;
CREATE TABLE if not exists clickzetta_demo_schema_evolution_schema.schema_evolution (
    t_tinyint tinyint,
    t_snmallint smallint,
    t_int int,
    t_bigint bigint,
    t_float float,
    t_double double,
    t_decimal decimal(5,2)
)partitioned by(pt string);

插入数据


insert into clickzetta_demo_schema_evolution_schema.schema_evolution select 1y,234s,10000,100000000,0.2f,0.004d,123.1bd,'202231120';

分区表加列必须指定位置，否则添加的列会在最后一列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution ADD COLUMN t_add int comment 'add';

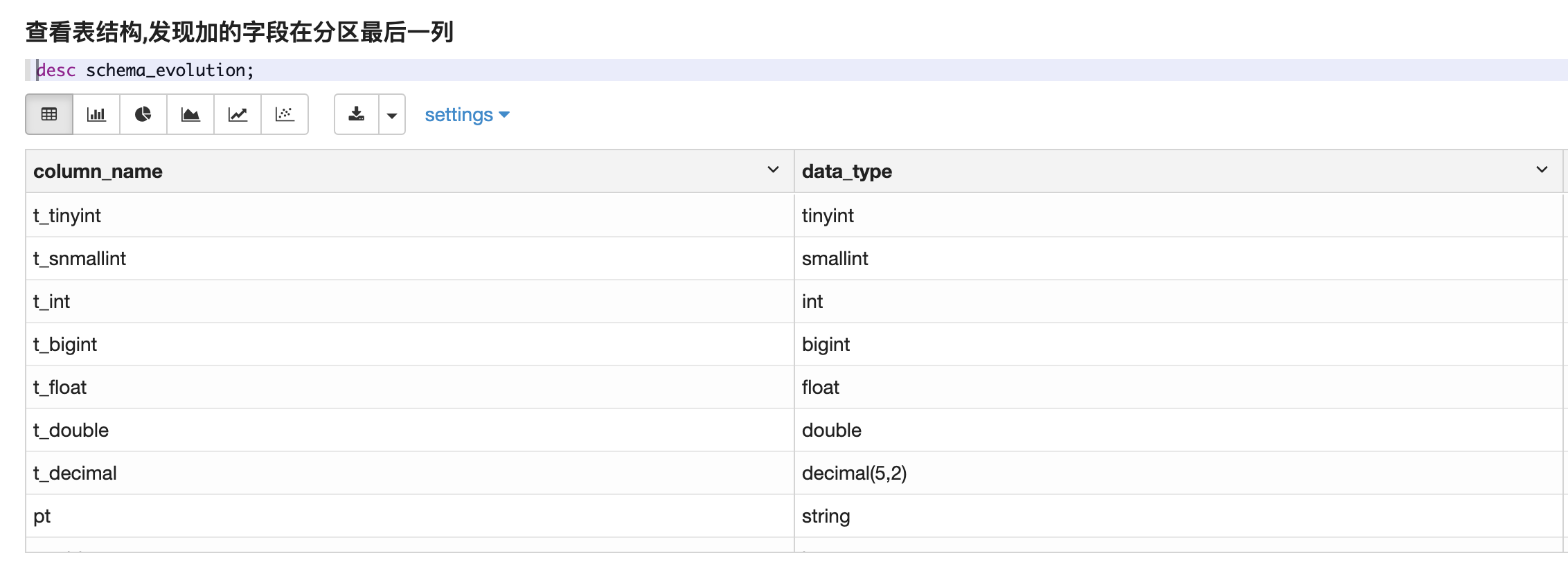

desc clickzetta_demo_schema_evolution_schema.schema_evolution;

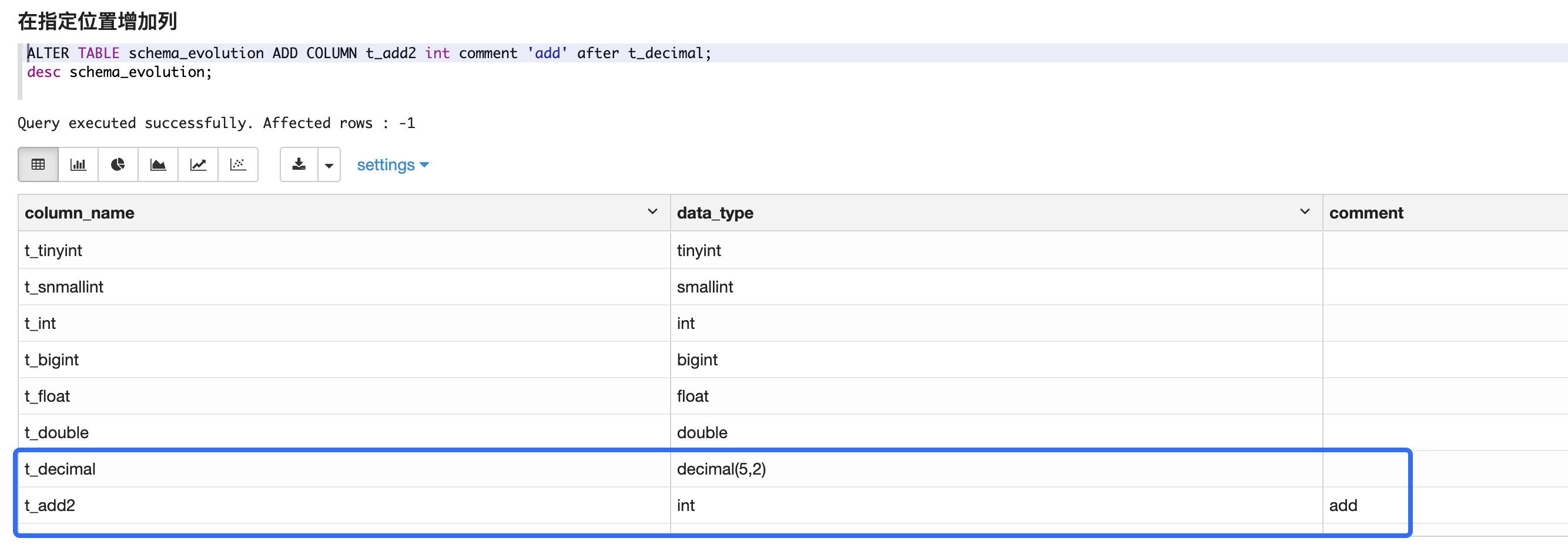

在指定位置增加列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution ADD COLUMN t_add2 int comment 'add' after t_decimal;
desc clickzetta_demo_schema_evolution_schema.schema_evolution;

删除列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution DROP   COLUMN t_add;
desc clickzetta_demo_schema_evolution_schema.schema_evolution;

重命名列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution rename COLUMN t_add2 to t_add;
desc clickzetta_demo_schema_evolution_schema.schema_evolution;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution;

修改字段位置


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_add  after t_tinyint ;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution;

修改数据类型


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_decimal  type DECIMAl(7,4) ;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution;

不支持的类型转换会报错


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_decimal  type date ;

##修改字段comment


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_tinyint  comment 'mysmallint';
desc clickzetta_demo_schema_evolution_schema.schema_evolution;

复杂类型修改

创建表


 CREATE TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 (
  point struct<x: int, y: double>,
  points array<struct<x: double, y: double>>,
  points_ky map<struct<x: int>, struct<a: int>>
    );

插入数据


insert into clickzetta_demo_schema_evolution_schema.schema_evolution_01 values(struct(1D,2D),array(struct(1D,2D)),null);

添加列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 ADD COLUMN point.z double ;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

删除point struct中的z列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 DROP COLUMN point.z;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

重命名point struct中的x列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 rename COLUMN point.x to xx;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

删除array嵌套struct中的y的列


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 DROP COLUMN points.element.y;
desc clickzetta_demo_schema_evolution_schema.schema_evolution_01;

修改struct类型


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 CHANGE COLUMN point.xx type bigint;
desc clickzetta_demo_schema_evolution_schema.schema_evolution_01;

修改复杂类型位置


ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 CHANGE COLUMN point.y first;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

清理


DROP SCHEMA IF EXISTS clickzetta_demo_schema_evolution_schema;

Congratulations, it's done.

Please enojoy and learn more!

附录

下载Zeppelin Notebook源文件

本文代码也提供运行在Zeppelin的版本，你如果想直接运行本文代码，请按照文档说明安装Zeppelin。

03.Schema Evolution.ipynb
